Bridge

Bridge is used when we need to decouple an abstraction from its implementation so that the two can vary independently. This type of design pattern comes under structural pattern as this pattern decouples implementation class and abstract class by providing a bridge structure between them.

This pattern involves an interface which acts as a bridge which makes the functionality of concrete classes independent from interface implementer classes. Both types of classes can be altered structurally without affecting each other.



Bridge in Java recognizable by creational methods taking an instance of different abstract/interface type and returning an implementation of own abstract/interface type which delegates/uses the given instance

• None comes to mind yet. A fictive example would be new LinkedHashMap(LinkedHashSet<K>, List<V>) which returns an unmodifiable linked map which doesn't clone the items, but uses them. The java.util.Collections#newSetFromMap() and singletonXXX() methods however comes close.

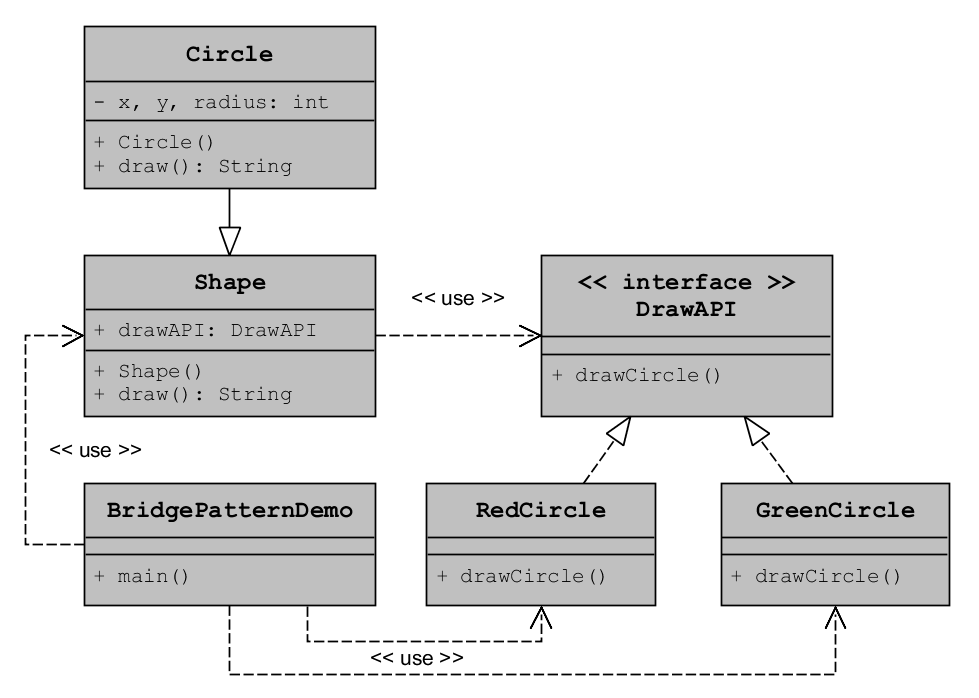

public interface DrawAPI {
   public void drawCircle(int radius, int x, int y);
}

public class RedCircle implements DrawAPI {
   @Override
   public void drawCircle(int radius, int x, int y) {
      System.out.println("Drawing Circle[ color: red, radius: " +
		radius + ", x: " + x + ", " + y + "]");
   }
}

public class GreenCircle implements DrawAPI {
   @Override
   public void drawCircle(int radius, int x, int y) {
      System.out.println("Drawing Circle[ color: green, radius: " +
		radius + ", x: " + x + ", " + y + "]");
   }
}

public abstract class Shape {
   protected DrawAPI drawAPI;

   protected Shape(DrawAPI drawAPI){
      this.drawAPI = drawAPI;
   }
   public abstract void draw();
}

public class Circle extends Shape {
   private int x, y, radius;

   public Circle(int x, int y, int radius, DrawAPI drawAPI) {
      super(drawAPI);
      this.x = x;
      this.y = y;
      this.radius = radius;
   }

   public void draw() {
      drawAPI.drawCircle(radius,x,y);
   }
}

public class BridgePatternDemo {
   public static void main(String[] args) {
      Shape redCircle = new Circle(100,100, 10, new RedCircle());
      Shape greenCircle = new Circle(100,100, 10, new GreenCircle());

      redCircle.draw();
      greenCircle.draw();
   }
}
